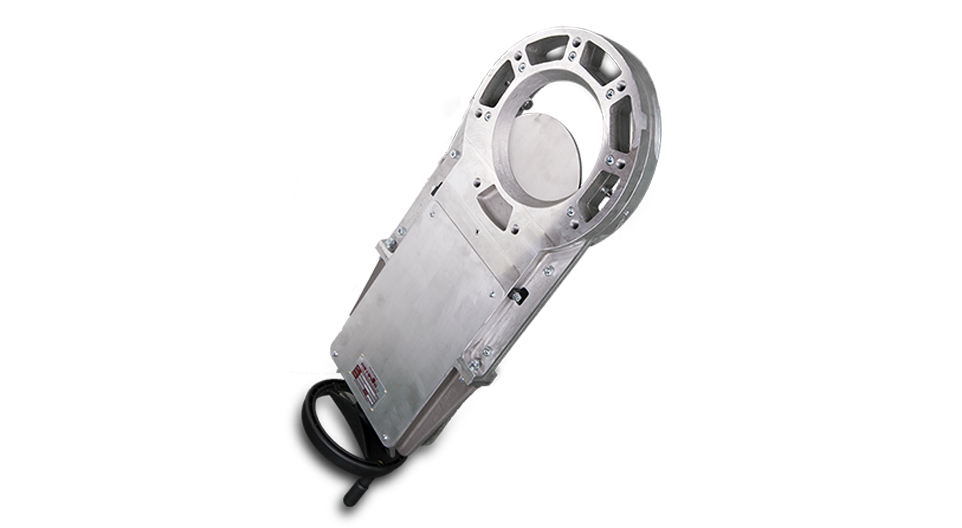

Cast Slimslide

cast slimslide hand wheel slim slide rotolok cast slimslide rotolok hand wheel slim slide rotolok wheel slimslide
cast slimslide hand wheel slim slide rotolok cast slimslide rotolok hand wheel slim slide rotolok wheel slimslide

Key Features

  • A compact design
  • No lodgement points
  • Dust tight to atmosphere on in-line applications
  • Stainless steel slide plate
  • Aluminum body
  • Nylon support studs
  • Dust seals
  • Available in Round and Square inlets
  • Operation through a lead screw. If chain/chainwheel is required please specify length of chain
Download Brochure Product Video Request a Quote

This cost effective valve is available with round or square inlets between 6″ and 14″, with a choice of manual, single pneumatic or motorised operation.

Used when isolating the flow of dry free flowing powders, granules and dust.

For use on various types of gravity feed applications, e.g. silos, hoppers, screw conveyors etc, where automatic operation is required.

Rotolok Slim-Slides are used when isolating the flow of dry free flowing products such as powder, granules and dust.

Designed for use on various types of gravity feed applications, e.g. silos, hoppers, screw conveyors etc. where non-automatic operation is required.

This cost effective valve is available with round or square inlets measuring between 5’’ to 14’’, with options available for single pneumatic or motorised operation.

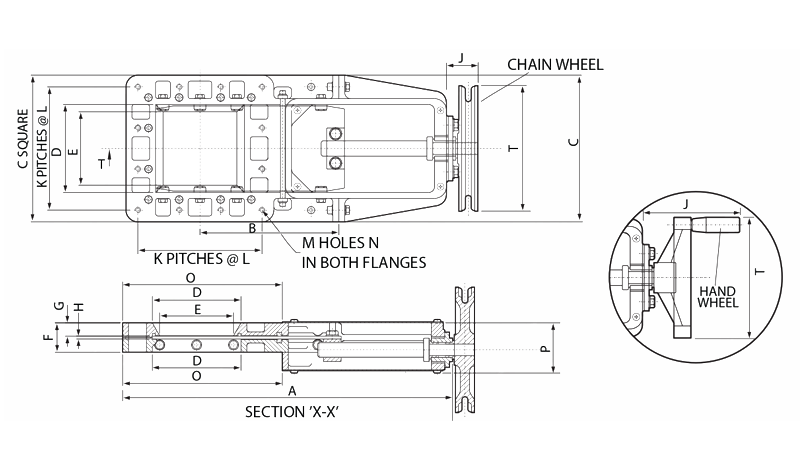

Cast Slimslide Hand Chain Square

All dimensions are in inches unless otherwise stated

SIZE A B C D E F G H K L M N O P J T J T
6’’ 22’’ 9 ¼’’ 10’’ 6’’ 5’’ 2’’ 1’’ ³⁄₁₆’’ ⅛’’ 2 ¾’’ 12 M10 10 ⅝’’ 3 ⅜’’ 6 ³⁄₁₆’’ 7 ⅞’’ 1 ⁷⁄₁₆’’ 8 ⁷⁄₁₆’’
8’’ 26 ⁵⁄₁₆’’ 11 ¹³⁄₁₆’’ 12’’ 8’’ 7’’ 2’’ 1’’ ³⁄₁₆’’ ⅛’’ 3 ½’’ 12 M10 12 ⅜’’ 3 ⅜’’ 6 ³⁄₁₆’’ 7 ⅞’’ 1 ⁷⁄₁₆’’ 8 ⁷⁄₁₆’’
10’’ 29 ⅜’’ 11’’ 13 ⁵⁄₁₆’’ 10’’ 9’’ 2’’ 1’’ ³⁄₁₆’’ ⅛’’ 4’’ 12 M12 14 ⅛’’ 3 ⅜’’ 6 ³⁄₁₆’’ 7 ⅞’’ 1 ⁷⁄₁₆’’ 8 ⁷⁄₁₆’’
12’’ 33 ¾’’ 12 ³⁄₁₆’’ 15 ¾’’ 12’’ 11’’ 2’’ 1’’ ³⁄₁₆’’ ⅛’’ 4 ¹¹⁄₁₆’’ 12 M10 16 ½’’ 3 ⅜’’ 6 ³⁄₁₆’’ 7 ⅞’’ 1 ⁷⁄₁₆’’ 8 ⁷⁄₁₆’’
14’’ 37 ½’’ 13 ⅜’’ 18’’ 14’’ 13’’ 2’’ 1’’ ³⁄₁₆’’ ⅛’’ 5 ½’’ 12 M12 18 ¹³⁄₁₆’’ 3 ⅜’’ 6 ³⁄₁₆’’ 7 ⅞’’ 1 ⁷⁄₁₆’’ 8 ⁷⁄₁₆’’
Hand Wheel Chain Wheel
Cast Slimslide Hand Chain Circular

All dimensions are in inches unless otherwise stated

SIZE A B C D E F G H K L M N O P J T J T
5’’ 20 ⅝’’ 9 ³⁄₁₆’’ 8 ½’’ 5’’ 4’’ 2’’ 1’’ ³⁄₁₆’’ 9 ⁷⁄₁₆’’ 8 M16 7 ⅞’’ 10 ⅜’’ 3 ⅜’’ 6 ³⁄₁₆’’ 7 ⅞’’ 1 ⁷⁄₁₆’’ 8 ⁷⁄₁₆’’
6’’ 23 ⁹⁄₁₆’’ 10 ⅛’’ 10’’ 6’’ 5’’ 2’’ 1’’ ³⁄₁₆’’ 11 ¼’’ 8 M16 9 ½’’ 12 ¼’’ 3 ⅜’’ 6 ³⁄₁₆’’ 7 ⅞’’ 1 ⁷⁄₁₆’’ 8 ⁷⁄₁₆’’
8’’ 28 ¹⁄₁₆’’ 13 ³⁄₁₆’’ 12’’ 8’’ 7’’ 2’’ 1’’ ³⁄₁₆’’ 12 ⅝’’ 8 M16 11’’ 14 ³⁄₁₆’’ 3 ⅜’’ 6 ³⁄₁₆’’ 7 ⅞’’ 1 ⁷⁄₁₆’’ 8 ⁷⁄₁₆’’
10’’ 33 ⅛’’ 14 ⅛’’ 13 ⁵⁄₁₆’’ 10’’ 8 ⅞’’ 2’’ 1’’ ³⁄₁₆’’ 14 ⅝’’ 8 M16 12 ⅝’’ 17 ⅞’’ 3 ⅜’’ 6 ³⁄₁₆’’ 7 ⅞’’ 1 ⁷⁄₁₆’’ 8 ⁷⁄₁₆’’
12’’ 38 ⁷⁄₁₆’’ 16 ¹⁄₁₆’’ 15 ¾’’ 12’’ 10 ⅞’’ 2’’ 1’’ ³⁄₁₆’’ 17 ⁵⁄₁₆’’ 12 M20 15 ⁹⁄₁₆’’ 21 ³⁄₁₆’’ 3 ⅜’’ 6 ³⁄₁₆’’ 7 ⅞’’ 1 ⁷⁄₁₆’’ 8 ⁷⁄₁₆’’
14’’ 43 ¹¹⁄₁₆’’ 18’’ 18’’ 14’’ 12 ¹³⁄₁₆’’ 2’’ 1’’ ³⁄₁₆’’ 21 ¾’’ 12 M20 17 ½’’ 25’’ 3 ⅜’’ 6 ³⁄₁₆’’ 7 ⅞’’ 1 ⁷⁄₁₆’’ 8 ⁷⁄₁₆’’
Hand Wheel Chain Wheel

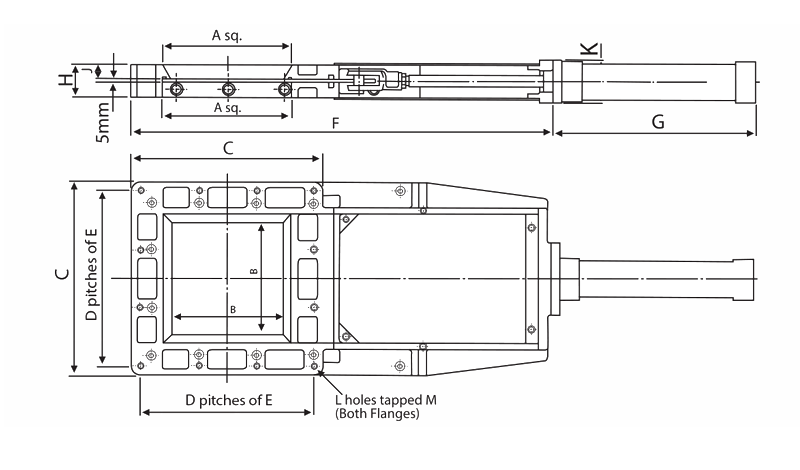

Cast Slimslide Pneumatic Square

All dimensions are in inches unless otherwise stated

SIZE A B C D E F G H J K L M
6’’ 6’’ 5’’ 10’’ 3 ⅜’’ 22’’ 10 ⅝’’ 2’’ ⅞’’ 2 ⅝’’ ½’’ M10
8’’ 8’’ 7’’ 12’’ 3 3 ⁹⁄₁₆’’ 25 ¹³⁄₁₆’’ 12 ⅝’’ 2’’ ⅞’’ 2 ⅝’’ ½’’ M10
10’’ 10’’ 9’’ 13 ⁵⁄₁₆’’ 3 4’’ 29 ⅜’’ 15 ¹⁄₁₆’’ 2’’ ⅞’’ 3’’ ½’’ M12
12’’ 12’’ 11’’ 15 ¾’’ 3 4 ¹¹⁄₁₆’’ 33 ¹³⁄₁₆’’ 17 ⅛’’ 2’’ ⅞’’ 3’’ ½’’ M10
14’’ 14’’ 13’’ 18’’ 3 5 ½’’ 38 ¹⁄₁₆’’ 19 ⅛’’ 2’’ ⅞’’ 3’’ ½’’ M12
Cast Slimslide Pneumatic Circular

All dimensions are in inches unless otherwise stated

SIZE A B C D E F G H J K L M
5’’ 5’’ 4’’ 9 ⁷⁄₁₆’’ 20 ¾’’ 9 ⅝’’ 8 ½’’ 2’’ ⅞’’ 2 ⅝’’ 8 M16 7 ⅞’’
6’’ 6’’ 5’’ 11 ¼’’ 23 ⅝’’ 10 ⅝’’ 10’’ 2’’ ⅞’’ 2 ⅝’’ 8 M16 9 ½’’
8’’ 8’’ 7’’ 12 ⅝’’ 27 ⅝’’ 12 ⅝’’ 12’’ 2’’ ⅞’’ 2 ⅝’’ 8 M16 11’’
10’’ 10’’ 9’’ 14 ⁹⁄₁₆’’ 33 ⅛’’ 15 ⅛’’ 13 ⁵⁄₁₆’’ 2’’ ⅞’’ 3’’ 8 M16 12 ⅝’’
12’’ 12’’ 11’’ 17 ⁵⁄₁₆’’ 38 ½’’ 17 ⅛’’ 15 ¾’’ 2’’ ⅞’’ 3’’ 12 M20 15 ½’’
14’’ 14’’ 13’’ 21 ¾’’ 44 ¼’’ 19 ⅛’’ 18’’ 2’’ ⅞’’ 3’’ 12 M20 17 ½’’
Cast Slimslide Motorised Square

All dimensions are in inches unless otherwise stated

SIZE A B C ØD ØE F G H I J ØK L M N O P Q R S T
6’’ 22’’ 9 ¼’’ 9 ⅞’’ 6’’ 5’’ 2’’ ⅞’’ 5 8 ¹⁄₁₆’’ 2’’ 3 2 ¾’’ 12 M10 10 ⅝’’ 3 ⅜’’ 1 ⁷⁄₁₆’’ 5 ¹⁵⁄₁₆’’ 9 ⁷⁄₁₆’’ 8 ⅜’’
8’’ 26 ¼’’ 11 ¾’’ 11 ¹³⁄₁₆’’ 7 ⅞’’ 6 ⅞’’ 2’’ ⅞’’ 5 11 ⁷⁄₁₆’’ 2’’ 3 3 ½’’ 12 M10 12 ⅜’’ 3 ⅜’’ 1 ⁷⁄₁₆’’ 5 ¹⁵⁄₁₆’’ 9 ⁷⁄₁₆’’ 8 ⅜’’
10’’ 29 ¾’’ 11’’ 13 ⁵⁄₁₆’’ 9 ⅞’’ 8 ⅞’’ 2’’ ⅞’’ 5 13 ¾’’ 2’’ 3 4’’ 12 M12 14 ⅛’’ 3 ⅜’’ 1 ⁷⁄₁₆’’ 5 ¹⁵⁄₁₆’’ 9 ⁷⁄₁₆’’ 8 ⅜’’
12’’ 33 ¾’’ 12 ¼’’ 15 ¾’’ 11 ¹³⁄₁₆’’ 10 ¹³⁄₁₆’’ 2’’ ⅞’’ 5 16 ¹⁵⁄₁₆’’ 2’’ 3 4 ¹¹⁄₁₆’’ 12 M10 16 ½’’ 3 ⅜’’ 1 ⁷⁄₁₆’’ 5 ¹⁵⁄₁₆’’ 9 ⁷⁄₁₆’’ 8 ⅜’’
14’’ 37 ½’’ 13 ⅜’’ 18’’ 13 ¾’’ 12 ¹³⁄₁₆’’ 2’’ ⅞’’ 5 19 ½’’ 2’’ 3 5 ½’’ 12 M12 18 ¹³⁄₁₆’’ 3 ⅜’’ 1 ⁷⁄₁₆’’ 5 ¹⁵⁄₁₆’’ 9 ⁷⁄₁₆’’ 8 ⅜’’

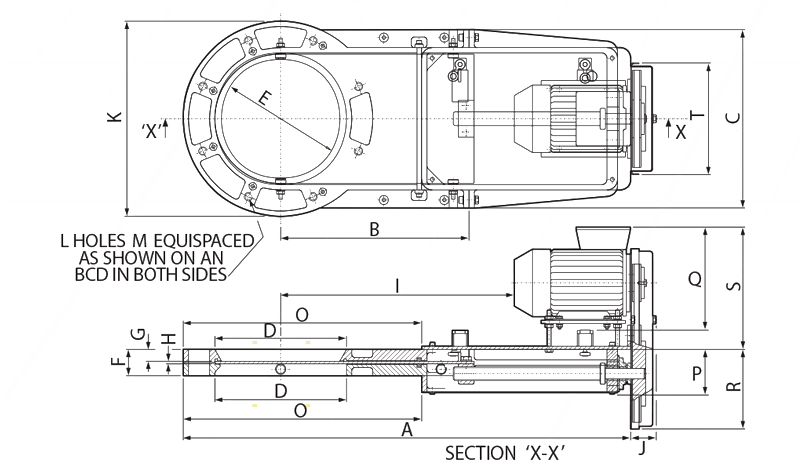

Cast Slimslide Motorised Circular

All dimensions are in inches unless otherwise stated

SIZE A B C ØD ØE F G H I J ØK L M N O P Q R S T
5’’ 20 ⅝’’ 9 ⅛’’ 8 ½’’ 4 ⅞’’ 3 ⅞’’ 2’’ ⅞’’ ³⁄₁₆’’ 6 ⅞’’ 2’’ 9 ½’’ 8 M16 7 ⅞’’ 10 ⅜’’ 3 ⅜’’ 1 ½’’ 6’’ 9 ½’’ 8 ⅜’’
6’’ 23 ⅝’’ 10 ⅛’’ 9 ⅞’’ 5 ⅞’’ 4 ⅞’’ 2’’ ⅞’’ ³⁄₁₆’’ 9’’ 2’’ 11 ¼’’ 8 M16 9 ½’’ 12 ¼’’ 3 ⅜’’ 1 ½’’ 6’’ 9 ½’’ 8 ⅜’’
8’’ 28 ⅛’’ 13 ¼’’ 11 ¾’’ 7 ⅞’’ 6 ⅞’’ 2’’ ⅞’’ ³⁄₁₆’’ 12 ¾’’ 2’’ 12 ⅝’’ 8 M16 11’’ 14 ⅛’’ 3 ⅜’’ 1 ½’’ 6’’ 9 ½’’ 8 ⅜’’
10’’ 33 ⅛’’ 14 ⅛’’ 13 ¼’’ 9 ⅞’’ 8 ⅞’’ 2’’ ⅞’’ ³⁄₁₆’’ 16 ¾’’ 2’’ 14 ⅝’’ 8 M16 12 ⅝’’ 17 ⅞’’ 3 ⅜’’ 1 ½’’ 6’’ 9 ½’’ 8 ⅜’’
12’’ 38 ⅜’’ 16 ⅛’’ 15 ¾’’ 11 ¾’’ 10 ⅞’’ 2’’ ⅞’’ ³⁄₁₆’’ 20 ⅞’’ 2’’ 17 ⅜’’ 12 M20 15 ½’’ 21 ⅛’’ 3 ⅜’’ 1 ½’’ 6’’ 9 ½’’ 8 ⅜’’
14’’ 43 ¾’’ 18’’ 18’’ 13 ¾’’ 12 ¾’’ 2’’ ⅞’’ ³⁄₁₆’’ 24 ¼’’ 2’’ 21’’ 12 M20 17 ½’’ 25’’ 3 ⅜’’ 1 ½’’ 6’’ 9 ½’’ 8 ⅜’’
Cast Slimslide Manual Square

All dimensions are in inches unless otherwise stated

SIZE A B C D E F G H J K L M
6’’ 6’’ 5’’ 10’’ 3 2 ¾’’ 14 ³⁄₁₆’’ 9 ¼’’ 7’’ 12 M10 2’’ ⅞’’
8’’ 8’’ 7’’ 12’’ 3 3 ⁹⁄₁₆’’ 17 ¾’’ 11 ¹³⁄₁₆’’ 7’’ 12 M10 2’’ ⅞’’
10’’ 10’’ 9’’ 13 ⁵⁄₁₆’’ 3 4’’ 17 ⅝’’ 11’’ 10’’ 12 M12 2’’ ⅞’’
12’’ 12’’ 11’’ 15 ¾’’ 3 4 ¹¹⁄₁₆’’ 20 ¹⁄₁₆’’ 12 ³⁄₁₆’’ 12’’ 12 M10 2’’ ⅞’’
14’’ 14’’ 13’’ 18’’ 3 5 ½’’ 22 ⅜’’ 13 ⅜’’ 14’’ 12 M12 2’’ ⅞’’
Cast Slimslide Manual Circular

All dimensions are in inches unless otherwise stated

SIZE A B C D E F G H J K L M
5’’ 5’’ 4’’ 9 ⁷⁄₁₆’’ 13 ⅞’’ 8 ½’’ 9 ³⁄₁₆’’ 5’’ 8 M16 7 ⅞’’ 2’’ ⅞’’
6’’ 6’’ 5’’ 11 ¼’’ 15 ¾’’ 10’’ 10 ⅜’’ 6’’ 8 M16 9 ½’’ 2’’ ⅞’’
8’’ 8’’ 7’’ 12 ⅝’’ 19 ½’’ 12’’ 13 ³⁄₁₆’’ 6 ¹³⁄₁₆’’ 8 M16 11’’ 2’’ ⅞’’
10’’ 10’’ 9’’ 14 ⁹⁄₁₆’’ 21 ⅜’’ 13 ⁵⁄₁₆’’ 14 ⅛’’ 10’’ 8 M16 12 ⅝’’ 2’’ ⅞’’
12’’ 12’’ 11’’ 17 ⁵⁄₁₆’’ 24 ¾’’ 15 ¾’’ 16 ¹⁄₁₆’’ 12’’ 12 M20 15 ½’’ 2’’ ⅞’’
14’’ 14’’ 13’’ 21’’ 28 ⁹⁄₁₆’’ 18’’ 18’’ 13 ¾’’ 12 M20 17 ½’’ 2’’ ⅞’’
